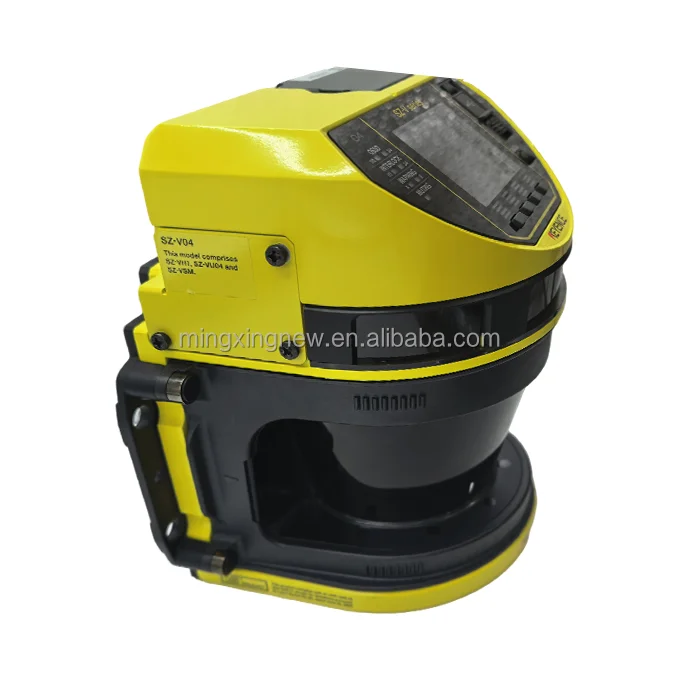

KEYENCE SZ Series Laser Safety Scanner SZ-V04

To handle the final quote outside checkout: contact the customer after the order and send them the final quote/invoice manually (and if needed, create a separate “Final payment” product/link for the remaining amount).

Product :

KEYENCE SZ Series Laser Safety Scanner SZ-V04 SZ-V04X SZ-V32 SZ-V32N SZ-V32NX SZ-V32X SZ-VU04 SZ-VU32 SZ-VU32N SZ-VH1 SZ-VH1X

SZ-V04

Type: Multifunctional Laser Scanner
* Minimum Detectable Object: Can detect objects with diameters of 20 mm, 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm, depending on the
device settings.
* Reflectivity Requirement: The object’s reflectivity must be 1.8% or higher.
* Maximum Detection Speed: The object’s moving speed shall not exceed 1.6 m/s (when the object enters the detection plane
vertically).
* Detectable Angle: 190° (ranging from -5° to 185°).
* Response Time: * ON to OFF: Depends on the scanning cycle (160 ms to 1280 ms in standard mode, 80 ms to 640 ms in high-speed
mode).
