Hantek DSO2C15 Multi-function Storage Oscilloscope 2 Channel 150MHz Bandwidth 1GSa/s
13000.00฿
Product Descriptions

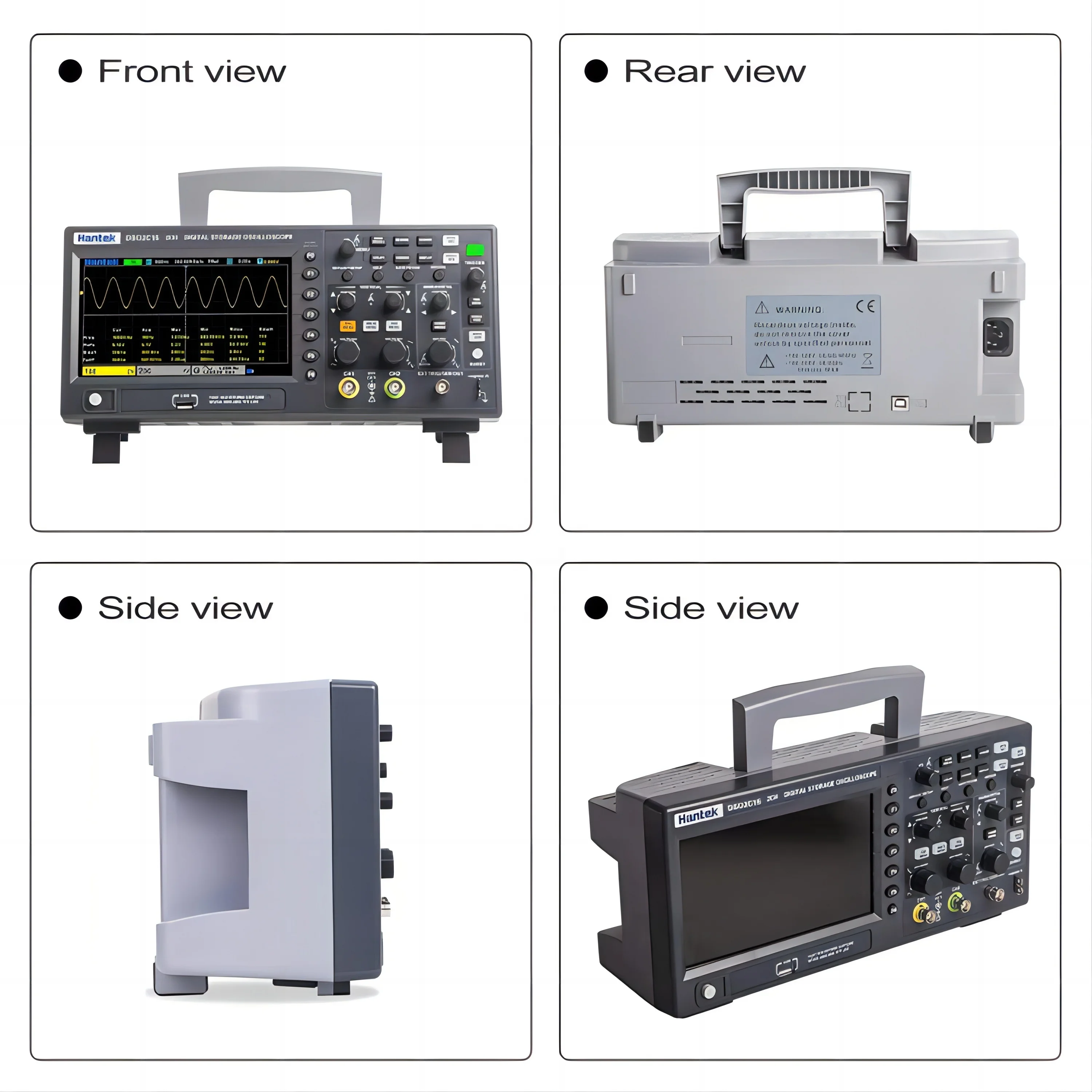

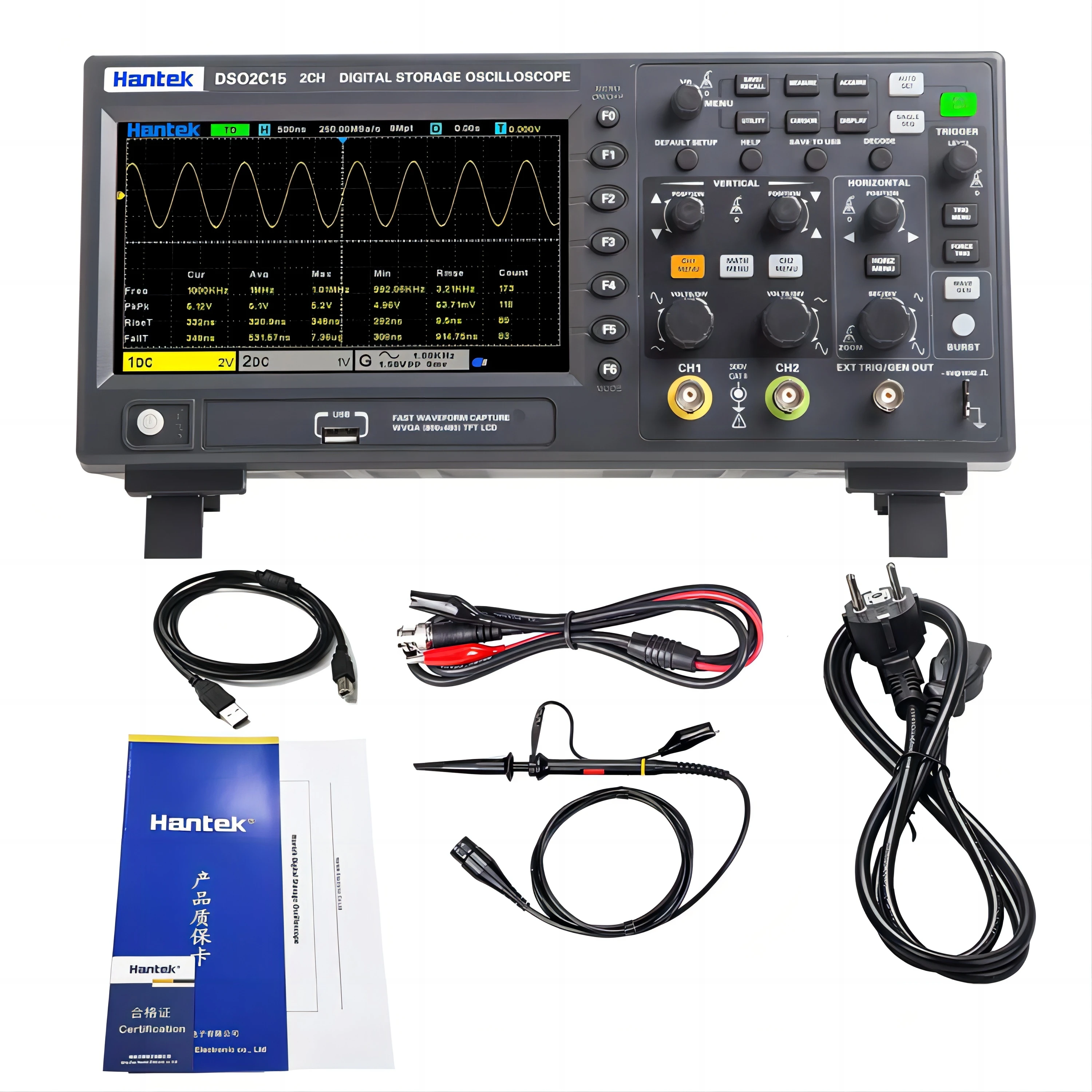

Hantek DSO2C15 Multi-function Storage Oscilloscope 2 Channel 150MHz Bandwidth 1GSa/s On sale
Hantek DSO2000 Series is cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support
arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of
auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of
DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication,
aerospace, national defense, embedded systems, computers, research and education.

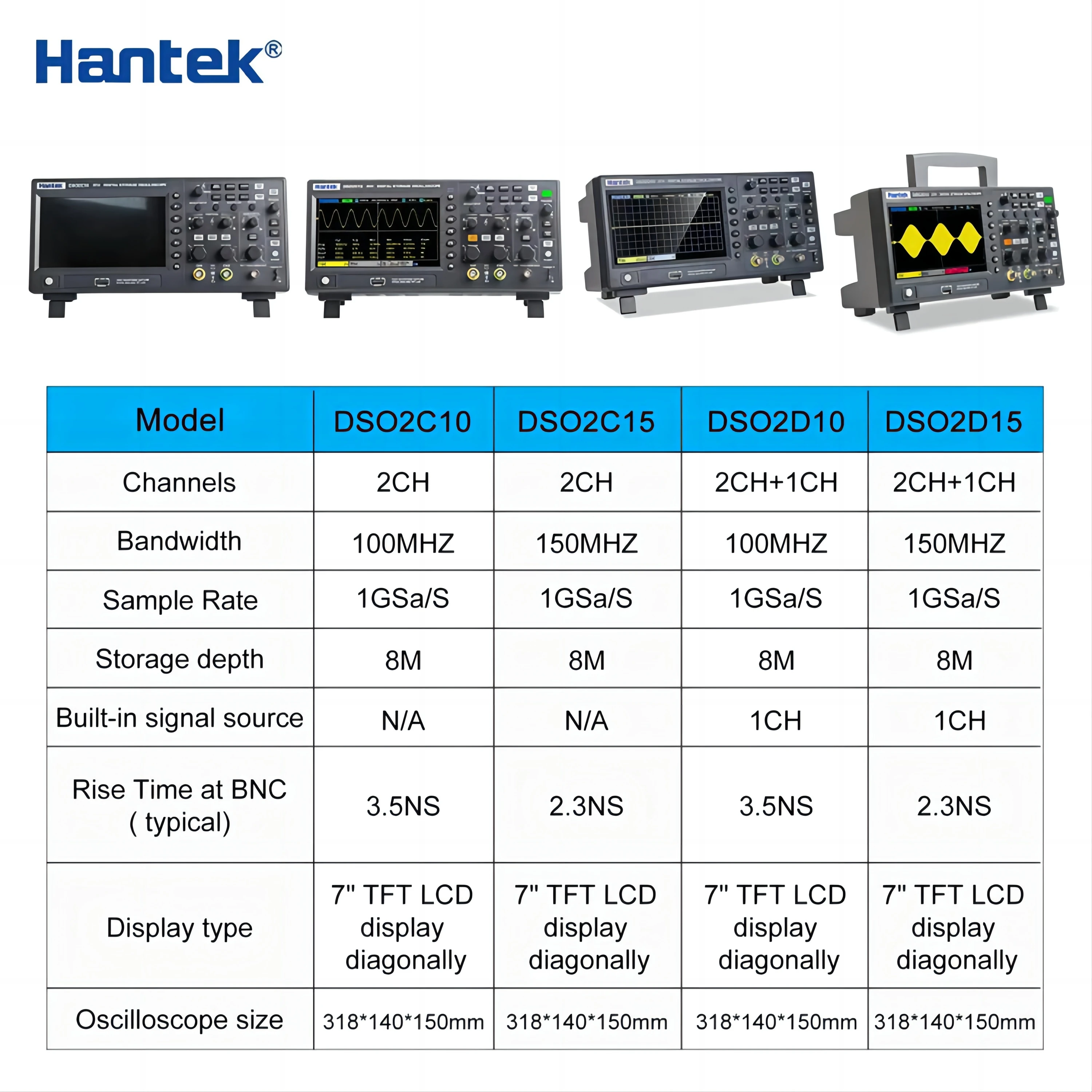

Product Specifications
Brand | Hantek |
Model | DSO2C10 |
Bandwidth | 100MHz |
Oscilloscope channels | 2CH |
Sample rate | 1GSa/s (single channel) 500MSa/s (two channels) |
High resolution | Up to 12bit |
Features
1) 2 channels which are respectively controlled by independent knobs
2) 100 MHZ and 150MHZ analog channel bandwidth
3) Sampling rate up to 1 GSa/s
4) 8M memory depth
5) Vertical range 2mV/div ~ 10V/div
6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
7) Vertical resolution: 8bit
8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator

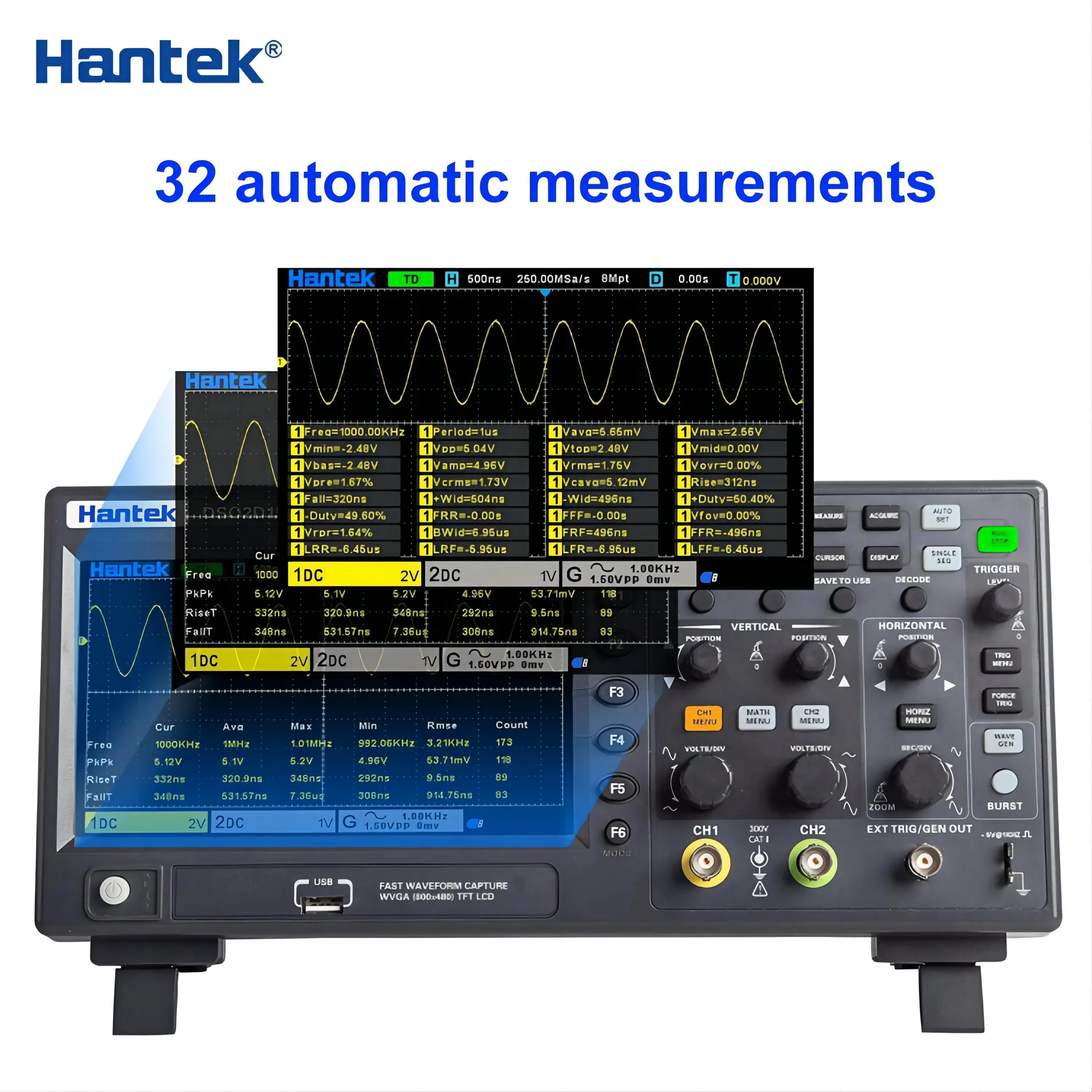

12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13) 2 sets of digital voltmeters
14) Support threshold testing, free measurements within the screen
15) Abundant SCPI remote command control
16) USB Host/Device.
About Shenzhen Tianzhi Technology co., Ltd.
We are a special agent authorized by the manufacturer to sell to any country in the world. Just like the picture on the left, we have just signed a strategic cooperation agreement. We have more than 10 million US dollars in stock, so we have the best price. Tell me your needs and you will get unexpected surprises.
What about the warranty?
Answer: We offer 18 months warranaty for the instrument except consumables
