power

Pneumatic

structure

General Cylinder

body material

Stainless Steel

warranty

1 Year

standard or nonstandard

Standard

core components

Cylinder

machinery test report

Provided

video outgoing-inspection

Provided

weight (kg)

0.4

place of origin

Zhejiang, China

brand name

AirTAC

MOQ

1 Piece

Maximum operating pressure

1.0 MPa

Action

Double Acting

Working medium

Compressed Air

Warranty

1 Year Double Acting Hydraulic Cylinder

Cushion

Bumper

Name

Twin Rod Pneumatic Cylinder

Proof Pressure

1.5 Mpa

Model

TN

Condition

100% Genuine

Product Description

Double Shaft TN Series AirTAC Twin Rod Pneumatic Air Cylinder

1.100% ORIGINAL AirTAC products. We can provide Authentic Product Traceability Report if customer need. 2.AirTAC has more than 700,000 SKUs, We are updating SKUs, but it is really difficult to display all on our website in short time,so if you find a SKU not on our website, or you are not sure what SKU you want, please kindly contact with us .

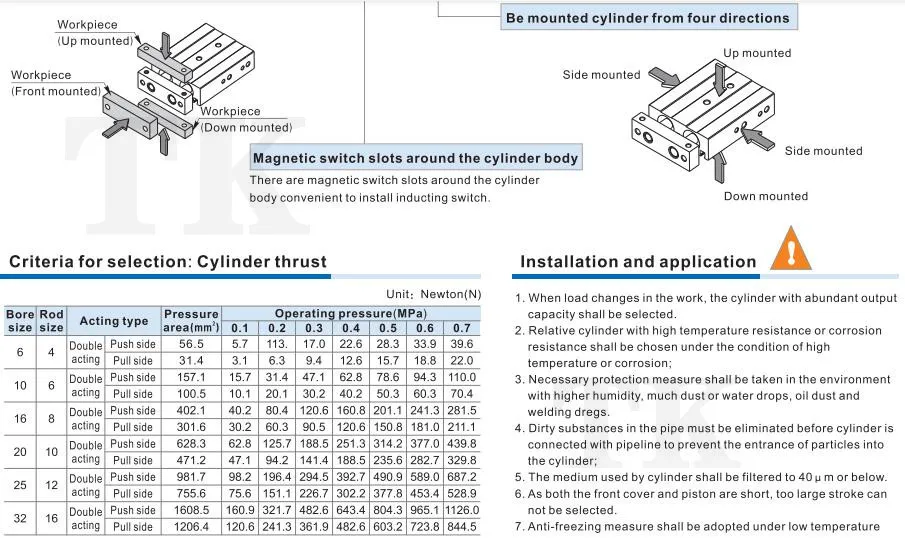

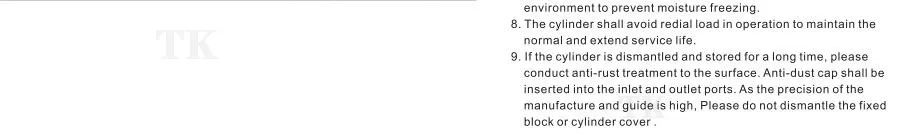

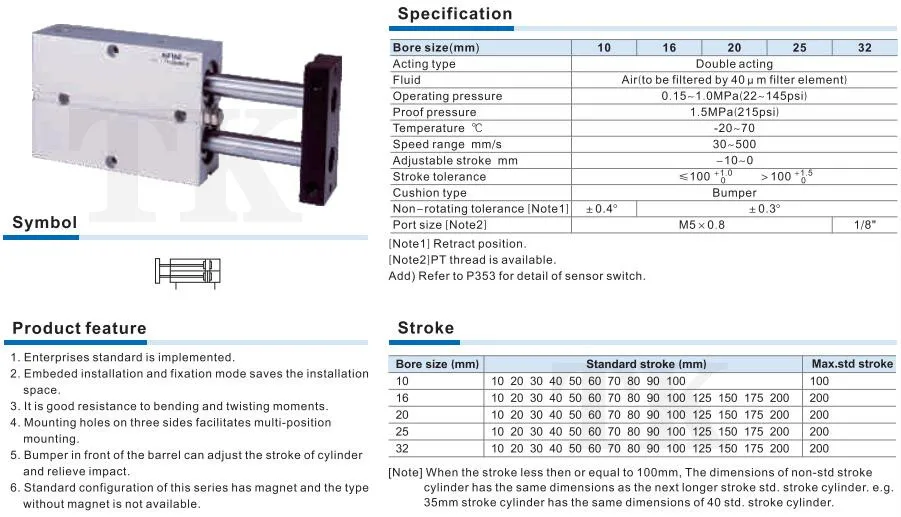

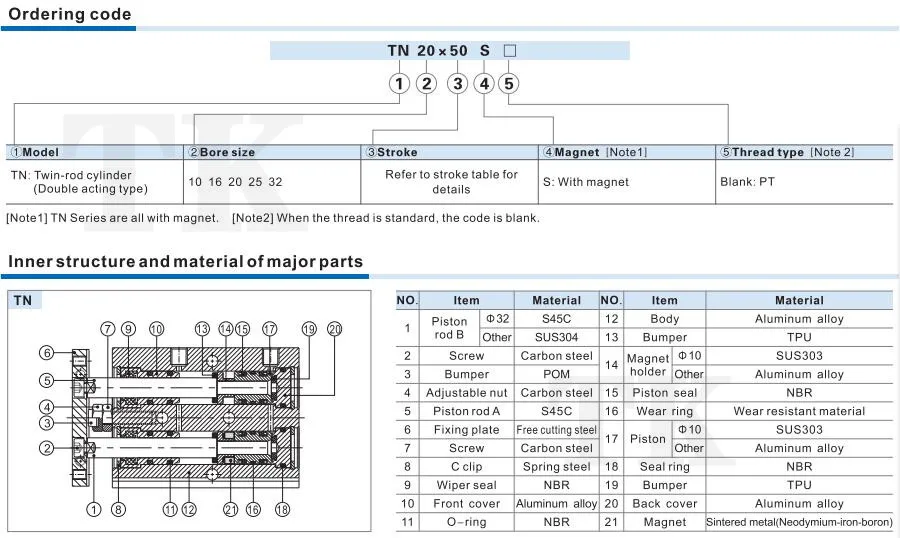

Model Code Explanation

Example: TN10X15S

The model is structured as:

TN 10 X 15 S

TN

Series name
Twin rod, compact guided cylinder.

10

Bore size = 10 mm

This is the internal piston diameter.

Available bore sizes in TN series typically include:

• 10 mm

• 16 mm

• 20 mm

• 25 mm

• 32 mm

Your list shows bore size 10 mm.

X 15

Stroke length = 15 mm

From your image:

Only the stroke changes. Bore remains 10 mm.

S

Magnet type

S = Built-in magnet for auto switch (reed or solid-state sensor)

This allows:

• Position detection

• PLC feedback

• End-of-stroke confirmation

Without “S” = no magnet.

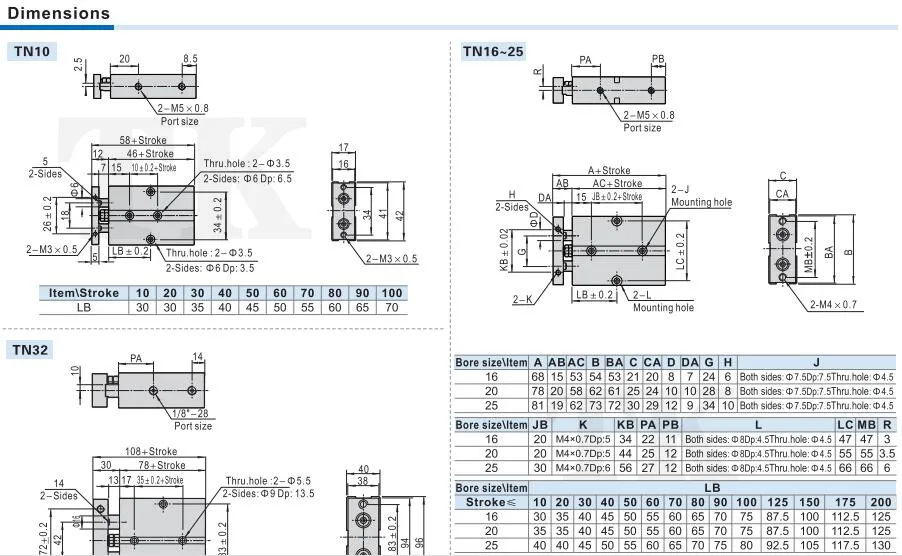

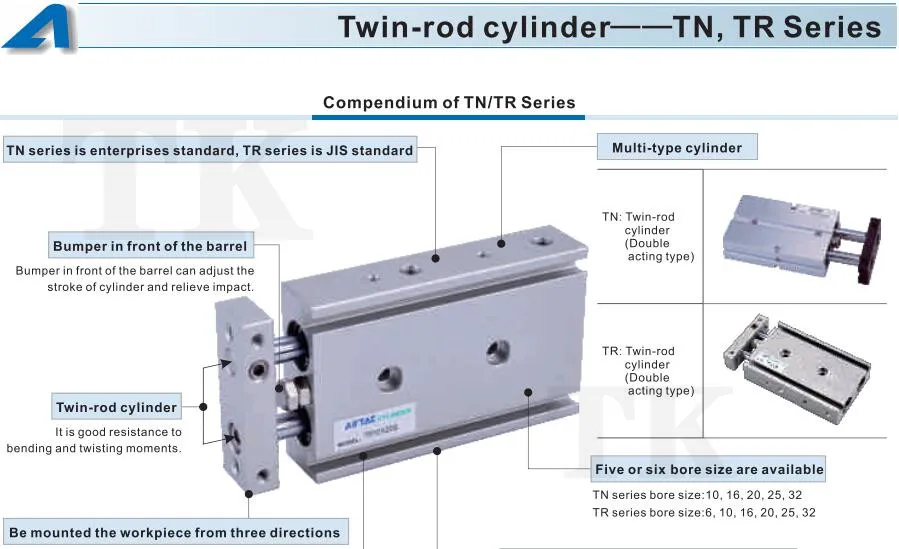

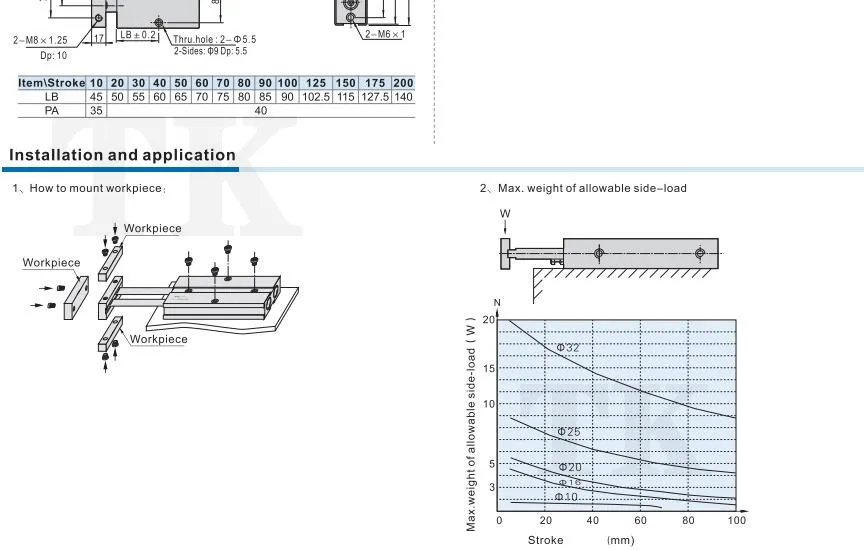

2) Mechanical Structure

The TN series has:

• Two guide rods

• One piston inside

• Aluminum body

• Front and rear end caps

Key advantage:
The twin rods prevent rotation and increase load stability.

Compared to a normal SC cylinder:

• Better lateral load resistance

• Higher precision alignment

• Less vibration
